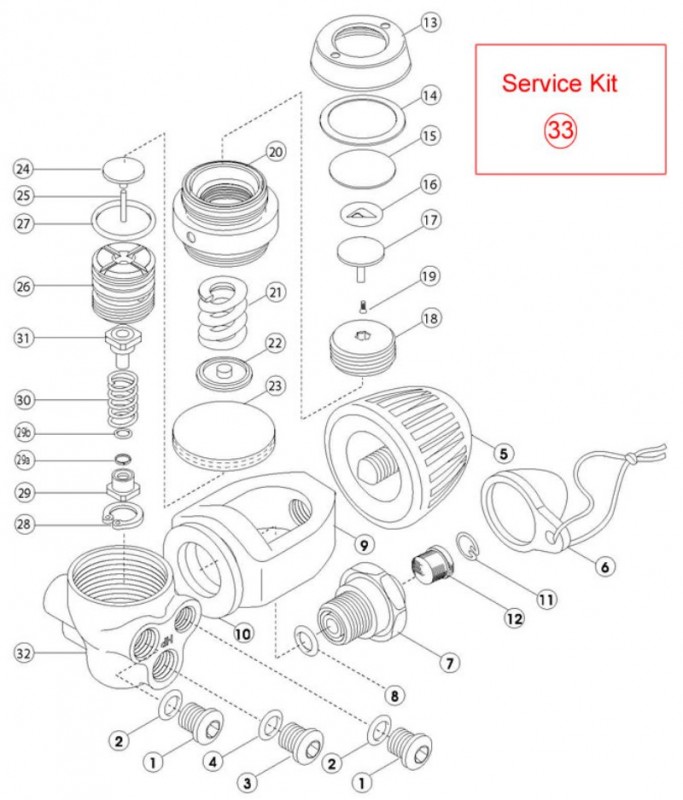

Regulator 1st stage a-320 Nrx
1st stage a-320 Nrx
| No. | Code Supplier |
Name | Price | ||
|---|---|---|---|---|---|
| 1 | SP90020 3100101101 |
PLUG (A) : 3/8 FOR L.P. | $24.36 | ||
| 2 | SP90154 3993592011 |
O-RING ARP-011/HS75 | $7.31 | ||
| 3 | SP90721 3100101102 |
PLUG (C) : 7/16 FOR H.P. | $24.36 | ||
| 4 | SP90006 3993898012 |
O-RING ARP-012/HS90 ID/9.25 VITON | $25.58 | ||
| 5 | SP90238 2102080158 |
YOKE SCREW WITH DECAL | $42.64 | ||
| 6 | SP90023 1184380003 |
DUST CAP ASSY | $48.73 | ||
| 7 | SP90724 3100101106 |
YOKE RETAINER : A-102/108/320 | $109.64 | ||
| 8 | SP90005 3993898011 |
O-RING ARP-011/HS90 ID/7.65 VITON | $14.40 | ||
| 9 | SP90001 3101300031 |
YOKE : A-320 | $389.83 | ||
| 10 | SP90726 3102480000 |
YOKE SPACER : A-108/320 | $21.93 | ||
| 11 | SP90778 3101200064 |
FILTER RETAINER FOR A-102,108,110,120 | $7.31 | ||
| 12 | SP90763 3990800412 |
FILTER 150 MICRON BUCKET TYPE | $55.69 | ||
| 13 | 3100101201 |
OUTER DIAPHRAGM HOLDER | |||
| 14 | SP90710 3102480001 |
DIAPHRAGM WASHER PET | $18.27 | ||
| 15 | SP90729 3102400021 |
OUTER DIAPHRAGM | $21.93 | ||
| 16 | SP90741 3104681000 |
BIO MARKED STICKER FOR PISTON | $18.27 | ||
| 17 | SP90777 3100101108 |
PISTON : FOR A-108/110/320 | $29.24 | ||
| 18 | SP90731 3100101110 |
ADJUST SCREW : FOR A-108/110/320 | $42.64 | ||
| 19 | SP90776 3990100063 |
SCREW SUS M2X6 | $3.65 | ||
| 20 | SP90732 3100101109 |
LOCK NUT : FOR A-108 | $170.55 | ||
| 21 | SP90733 3101200062 |
ADJUST SPRING FOR L.P:FOR REGULATOR | $24.36 | ||
| 22 | SP90734 3100101111 |
SPRING PAD : FOR A-101,2,5,7,8,10,320 | $24.36 | ||
| 23 | SP90775 3103980105 |
HIGH PRESSURE DIAPHRAGM | $15.84 | ||
| 24 | SP90780 3100101105 |
PUSH ROD PAD : FOR A-101,2,5,7,8,10 | $31.67 | ||
| 25 | SP90781 3990100072 |
PUSH ROD PIN : A-101,2,5,7,8,10 | $3.65 | ||
| 26 | SP90736 3100101115 |
H.P. MODULE WITH GUIDE SPEC FOR REGULATOR | $109.64 | ||
| 27 | SP90010 3993898017 |
O-RING ARP-017/HS90 ID/17.17 VITON | $28.02 | ||
| 28 | SP90025 3990500101 |
RETAINING RING | $13.40 | ||
| 29 | SP90028 2100100050 |
BALANCE CHAMBER WITH O-RING: A-101,2,5,7,8,10,20 | $48.73 | ||
| 29a | SP90711 3102070000 |
BACKUP RING: A-101,2,5,7,8,10,320 | $9.75 | ||
| 29b | SP90009A 3993898006 |
O-RING ARP-006/HS90 ID/2.90 VITON | $18.27 | ||
| 30 | SP90030 3101200071 |
HIGH PRESSURE SPRING : A-101,2,5,7,8,10,320 | $23.15 | ||
| 31 | SP90031b 3100103210 |
PTMEG 2000 HIGH PRESSURE SEAT | $73.30 | ||
| 32 | SP90003 3101300030 |
BODY : A-320 3/8x4,7/16x2 | $609.10 | ||
| 33 | SP00011 |
Spare Parts Kits for 1st Stage A-320 DIN | $139.00 | ||
